Volume Meshing¶
Stellarmesh also supports unstructured volume meshes generated with Gmsh.
[1]:
import tempfile
from pathlib import Path
import build123d as bd
import numpy as np
import openmc
import openmc.stats
import pyvista as pv
from IPython.display import Image
import stellarmesh as sm
/home/alex/Programming/stellarmesh/.pixi/envs/dev/lib/python3.11/site-packages/pymoab/__init__.py:21: UserWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.
from pkg_resources import get_distribution, DistributionNotFound
[2]:
def render_mesh(mesh: sm.Mesh):
"""Render a Stellarmesh mesh to the notebook output."""
with tempfile.NamedTemporaryFile(suffix=".png", delete=False) as tmp_file:
mesh.render(tmp_file.name, rotation_xyz=(90, 0, -90), normals=0, clipping=True)
display(Image(tmp_file.name, width=800))
[3]:
def build_torus_geometry():
"""Render a Stellarmesh mesh to the notebook output."""
solids = [bd.Solid.make_torus(10, 1).solid()]
for _ in range(2):
solids.append(bd.thicken(solids[-1].faces()[0], 1).solid())
solids = solids[1:]
return sm.Geometry(solids, material_names=["a", "b"])
Volume meshing with Gmsh¶
Volume meshes are created using the VolumeMesh class. The mesh is configured using the GmshVolumeOptions options class.
Note: the overlaps seen in the below render are visual artifacts.
[4]:
geometry = build_torus_geometry()
options = sm.GmshVolumeOptions(max_mesh_size=1)
mesh = sm.VolumeMesh.from_geometry(geometry, options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

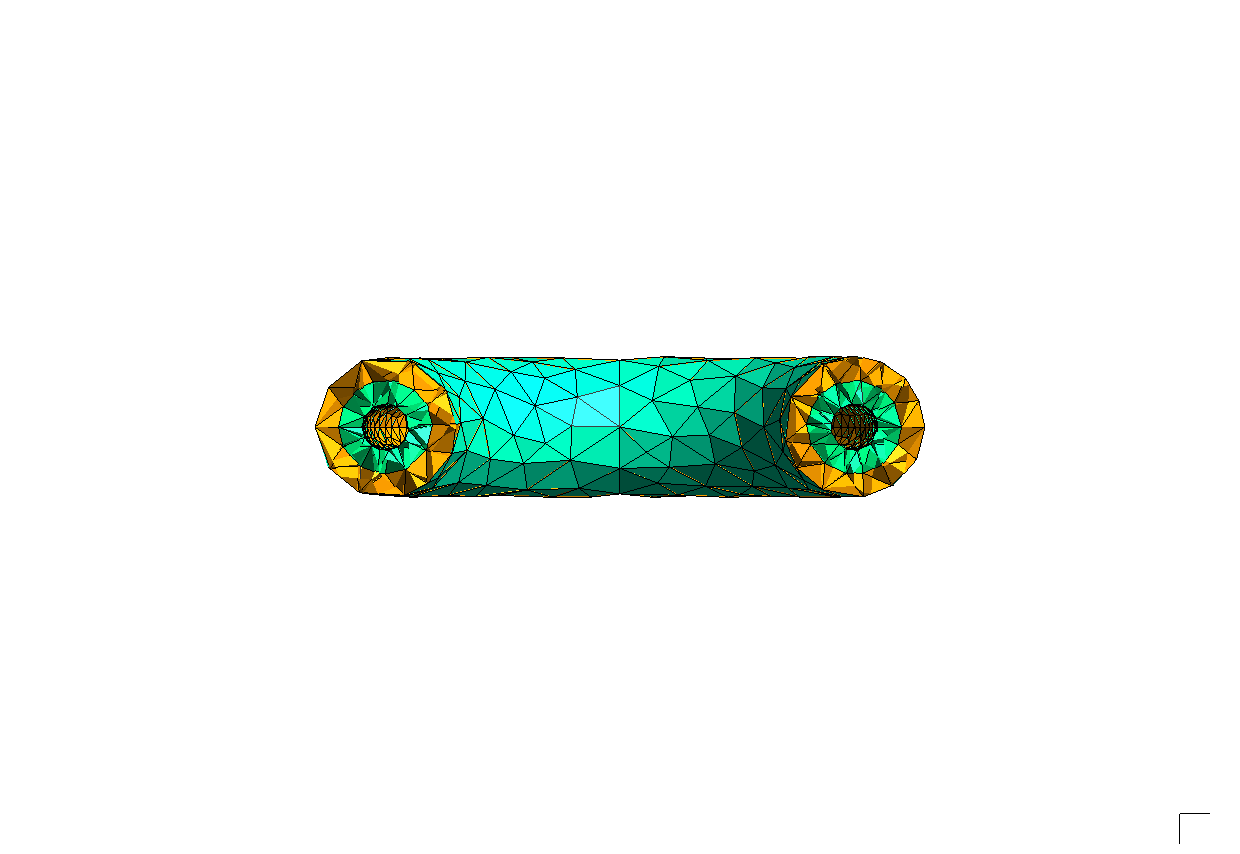

The mesh can be configured using many of the same options as GmshSurfaceOptions.
[5]:
geometry = build_torus_geometry()
options = sm.GmshVolumeOptions(curvature_target=10)
mesh = sm.VolumeMesh.from_geometry(geometry, options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

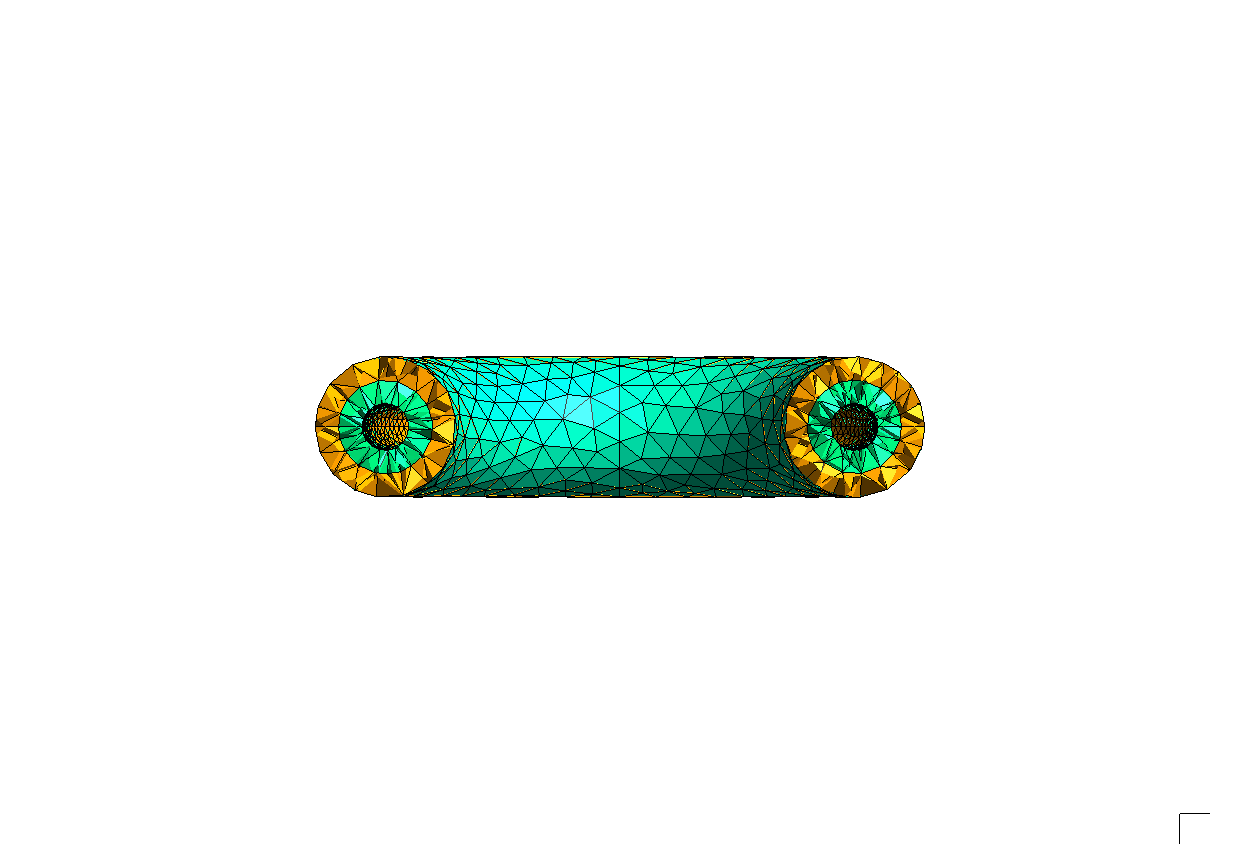

We can select from a number of surface and volume meshing algorithms with the algorithm2d and algorithm3d parameters.
[6]:
geometry = build_torus_geometry()
options = sm.GmshVolumeOptions(
curvature_target=15,
algorithm2d=sm.GmshSurfaceAlgo.MESH_ADAPT,
algorithm3d=sm.GmshVolumeAlgo.FRONTAL,
)
mesh = sm.VolumeMesh.from_geometry(geometry, options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0
MOAB and LibMesh export¶
Unstructured volume meshes can be exported for analysis in OpenMC or elsewhere using both MOAB and LibMesh EXODUS files.
[7]:
# MOAB export
sm.MOABModel.from_mesh(mesh).write("torus3d.h5m")
# EXODUS export
mesh.write("torus3d.exo", use_meshio=True)
OpenMC Simulation on an Unstructured Volume Mesh¶

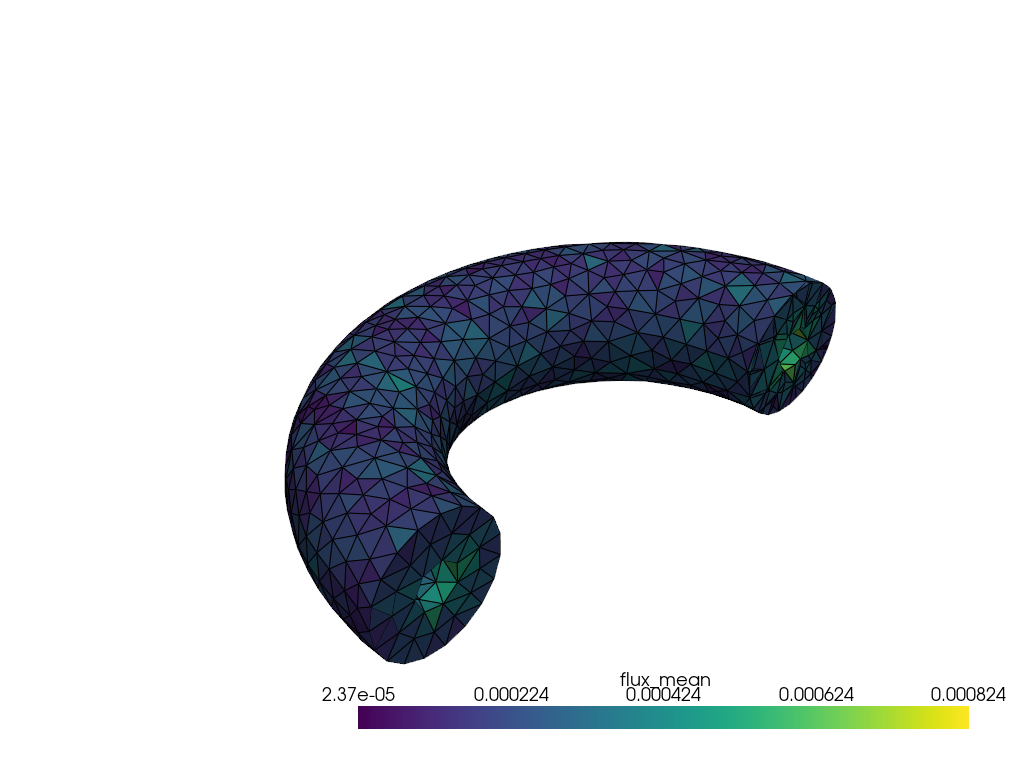

We can use the unstructured volume mesh as a tally mesh in OpenMC. First we build both a surface mesh (for DAGMC geometry) and a volume mesh (for tallying), then run a fixed-source simulation and map the flux result back onto the tet mesh for visualization with PyVista.
[12]:
with tempfile.TemporaryDirectory() as tmpdirname:
tmp_path = Path(tmpdirname)
geometry = build_torus_geometry()
surface_mesh = sm.SurfaceMesh.from_geometry(
geometry, sm.OCCSurfaceOptions(tol_angular_deg=0.5)
)
dagmc_model = sm.DAGMCModel.from_mesh(surface_mesh)
dagmc_model.write(tmp_path / "dagmc.h5m")
vol_mesh = sm.VolumeMesh.from_geometry(
geometry, sm.GmshVolumeOptions(max_mesh_size=1)
)
vol_mesh_path = str(tmp_path / "torus_vol.h5m")
sm.MOABVolumeModel.from_mesh(vol_mesh).write(vol_mesh_path)
mat1 = openmc.Material(name="a")
mat1.add_nuclide("Fe56", 1)
mat1.set_density("g/cm3", 1)
mat2 = openmc.Material(name="b")
mat2.add_nuclide("Be9", 1)
mat2.set_density("g/cm3", 1)
materials = openmc.Materials([mat1, mat2])
universe = openmc.DAGMCUniverse(tmp_path / "dagmc.h5m").bounded_universe()
openmc_geometry = openmc.Geometry(universe)
source = openmc.IndependentSource()
source.space = openmc.stats.CylindricalIndependent(
openmc.stats.Discrete([10], [1]),
openmc.stats.Uniform(0, 2 * np.pi),
openmc.stats.Discrete([0], [1]),
)
source.energy = openmc.stats.Discrete([14e6], [1])
settings = openmc.Settings()
settings.batches = 10
settings.inactive = 0
settings.particles = 10000
settings.run_mode = "fixed source"
settings.source = source
umesh = openmc.UnstructuredMesh(vol_mesh_path, library="moab")
umesh_filter = openmc.MeshFilter(umesh)
umesh_tally = openmc.Tally(name="flux_mesh")
umesh_tally.filters = [umesh_filter]
umesh_tally.scores = ["flux"]
tallies = openmc.Tallies([umesh_tally])
model = openmc.Model(openmc_geometry, materials, settings, tallies)
model.export_to_model_xml(path=tmp_path)
output_file = model.run(cwd=str(tmp_path))
with openmc.StatePoint(output_file) as sp:
tally_result = sp.get_tally(name="flux_mesh")
flux_mean = tally_result.mean.ravel()
flux_sd = tally_result.std_dev.ravel()
vol_mesh.write(str(tmp_path / "torus_vol.msh"))
pv.set_jupyter_backend("static")
raw_mesh = pv.read(str(tmp_path / "torus_vol.msh"))
tet_indices = np.where(raw_mesh.celltypes == pv.CellType.TETRA)[0]
tet_mesh = raw_mesh.extract_cells(tet_indices).remove_unused_points()
tet_mesh.cell_data["flux_mean"] = flux_mean
tet_mesh.cell_data["flux_sd"] = flux_sd
clipped = tet_mesh.clip(normal="y", invert=True)
plotter = pv.Plotter(off_screen=True)
plotter.add_mesh(clipped, scalars="flux_mean", show_edges=True, log_scale=False)
plotter.view_isometric()
plotter.screenshot(str(tmp_path / "flux.png"))
display(Image(str(tmp_path / "flux.png"), width=800))
