Surface Meshing¶
This example demonstrates how to construct a geometry, surface mesh, and DAGMC model using Stellarmesh along with an OpenMC tally.
[7]:
import tempfile
import build123d as bd
from IPython.display import Image
import stellarmesh as sm
[8]:
def render_mesh(mesh: sm.Mesh):
"""Render a Stellarmesh mesh to the notebook output."""
with tempfile.NamedTemporaryFile(suffix=".png", delete=False) as tmp_file:
mesh.render(tmp_file.name, rotation_xyz=(90, 0, -90), normals=0, clipping=True)
display(Image(tmp_file.name, width=800))
Model Geometry with build123d¶
Geometry is initialized in Stellarmesh with the Geometry class. Here, we construct a layered torus model with build123d, but CadQuery solids are equally supported. The length of material_names must match the length of solids.
[9]:
def build_torus_geometry():
"""Example torus geometry with 2 concentric layers."""
solids = [bd.Solid.make_torus(10, 1).solid()]
for _ in range(2):
solids.append(bd.thicken(solids[-1].faces()[0], 1).solid())
solids = solids[1:]
return sm.Geometry(solids, material_names=["a", "b"])
Mesh Geometry¶
We create a surface mesh for our geometry using the SurfaceMesh from_geometry constuctor, which takes as a second parameter the meshing backend of our choice. Here, we use the OCC meshing backend with an angular tolernace of 1 degree.
[10]:
geometry = build_torus_geometry()
meshing_options = sm.OCCSurfaceOptions(tol_angular_deg=1, tol_linear=None)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0
Decreasing the angular tolernace to 0.5 degrees gives us a higher resolution mesh.
[11]:
geometry = build_torus_geometry()
meshing_options = sm.OCCSurfaceOptions(tol_angular_deg=0.5, tol_linear=None)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

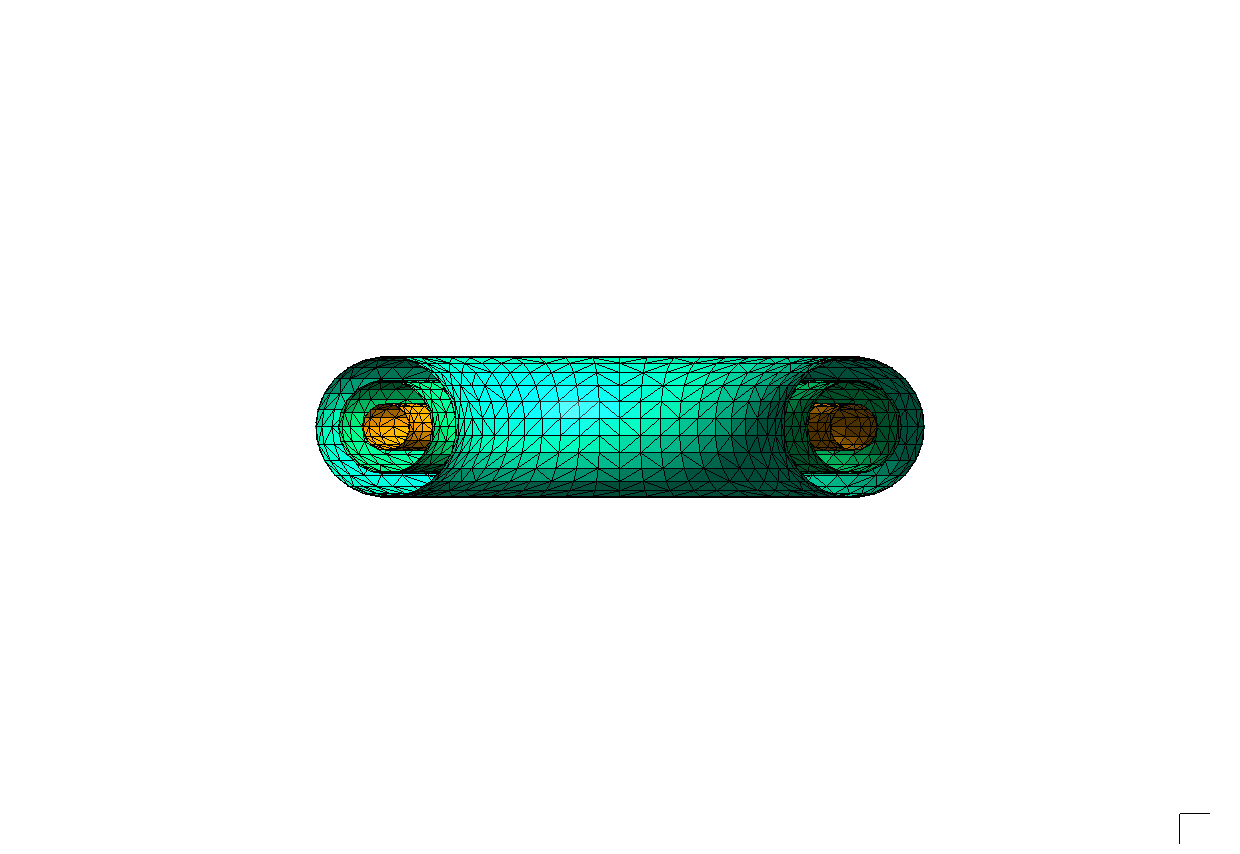

Linear tolerance¶
We can also specify a linear tolerance. Here, we assert that the generated mesh must lie within 0.05 units of the true surface.
[12]:
geometry = build_torus_geometry()
meshing_options = sm.OCCSurfaceOptions(tol_angular_deg=None, tol_linear=0.05)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
render_mesh(mesh)
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

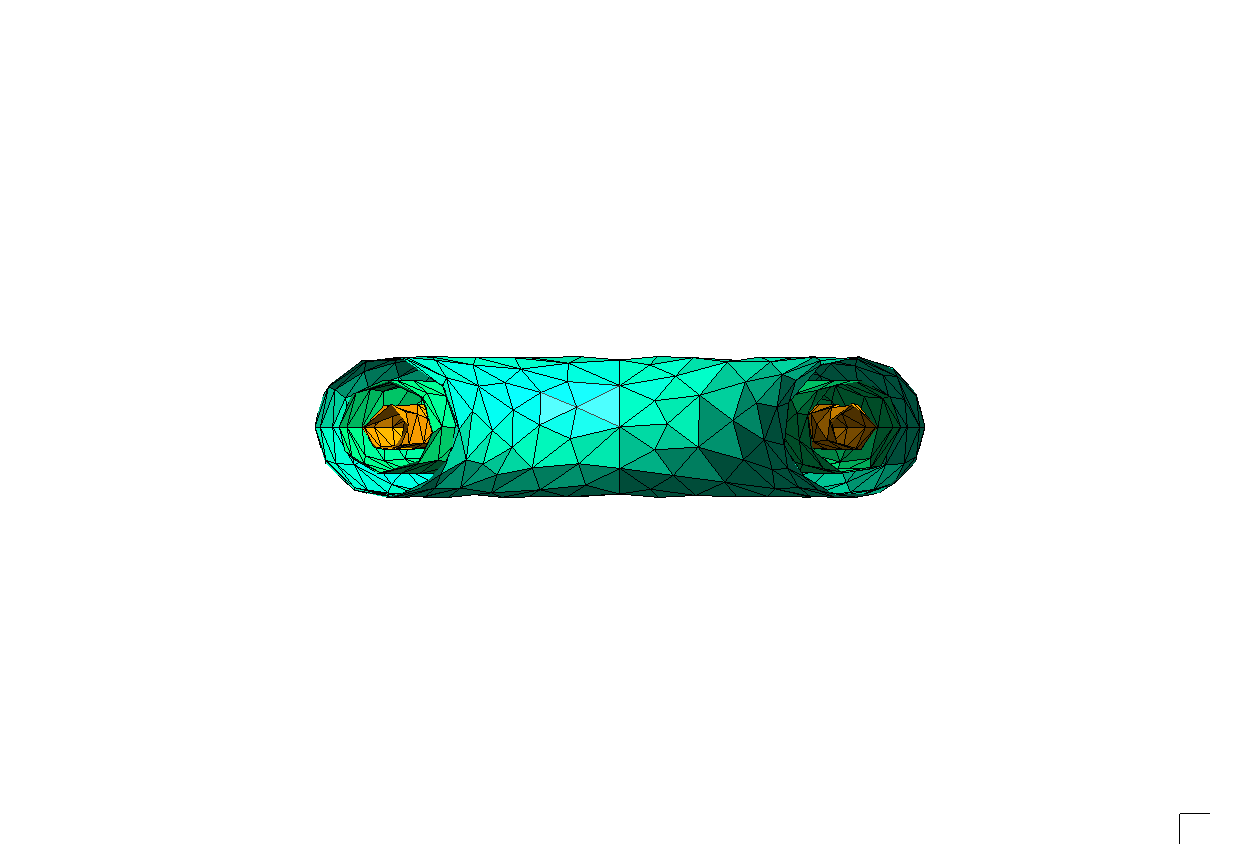

Mesh With Gmsh¶
It is also possible to mesh geometries using Gmsh surface meshing algorithms. These algorithms generate high quality elements. However, Gmsh does not support specifying exact tolerances.
[13]:
geometry = build_torus_geometry()
meshing_options = sm.GmshSurfaceOptions(min_mesh_size=0.5, max_mesh_size=2)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
mesh.render("mesh.png", rotation_xyz=(90, 0, -90), normals=0, clipping=True)
display(Image("mesh.png", width=800))
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

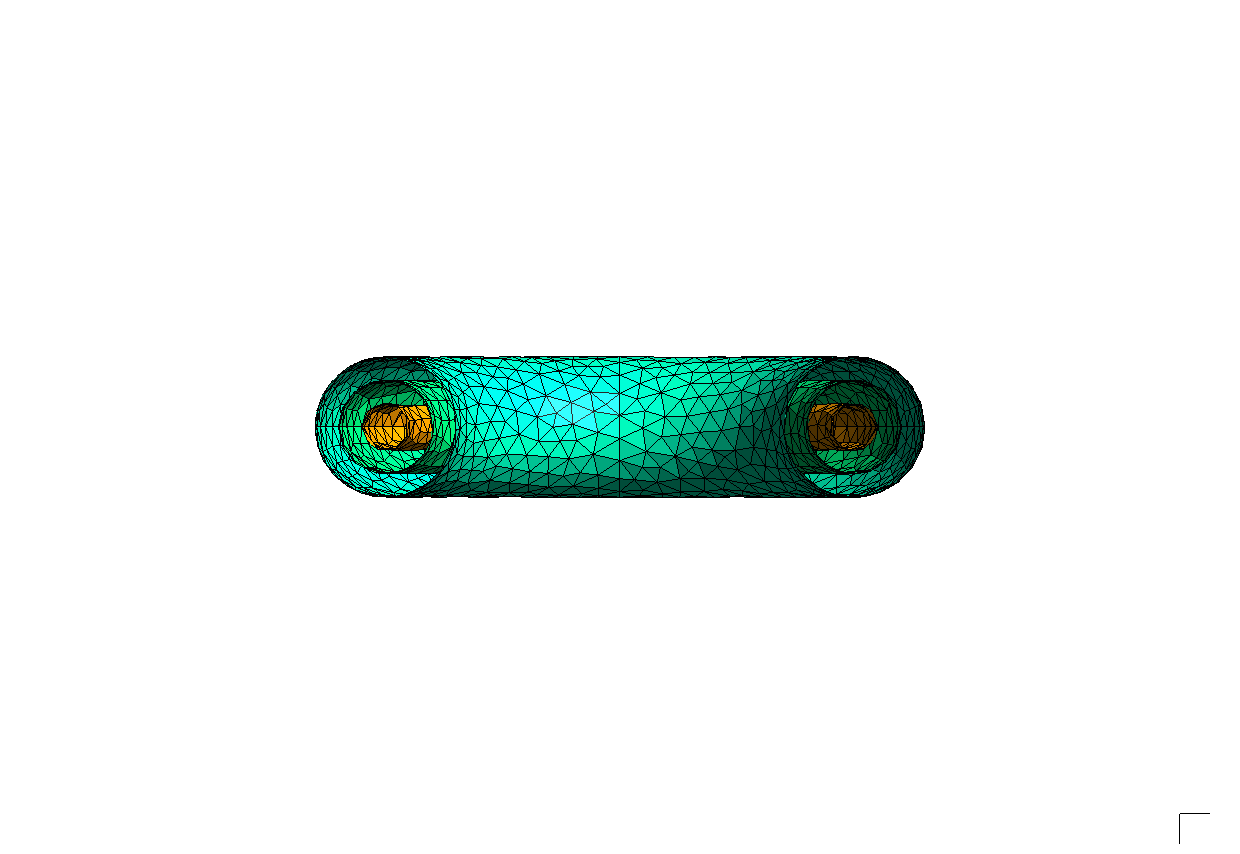

[14]:
geometry = build_torus_geometry()
meshing_options = sm.GmshSurfaceOptions(min_mesh_size=0.5, max_mesh_size=1)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
mesh.render("mesh.png", rotation_xyz=(90, 0, -90), normals=0, clipping=True)
display(Image("mesh.png", width=800))
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0

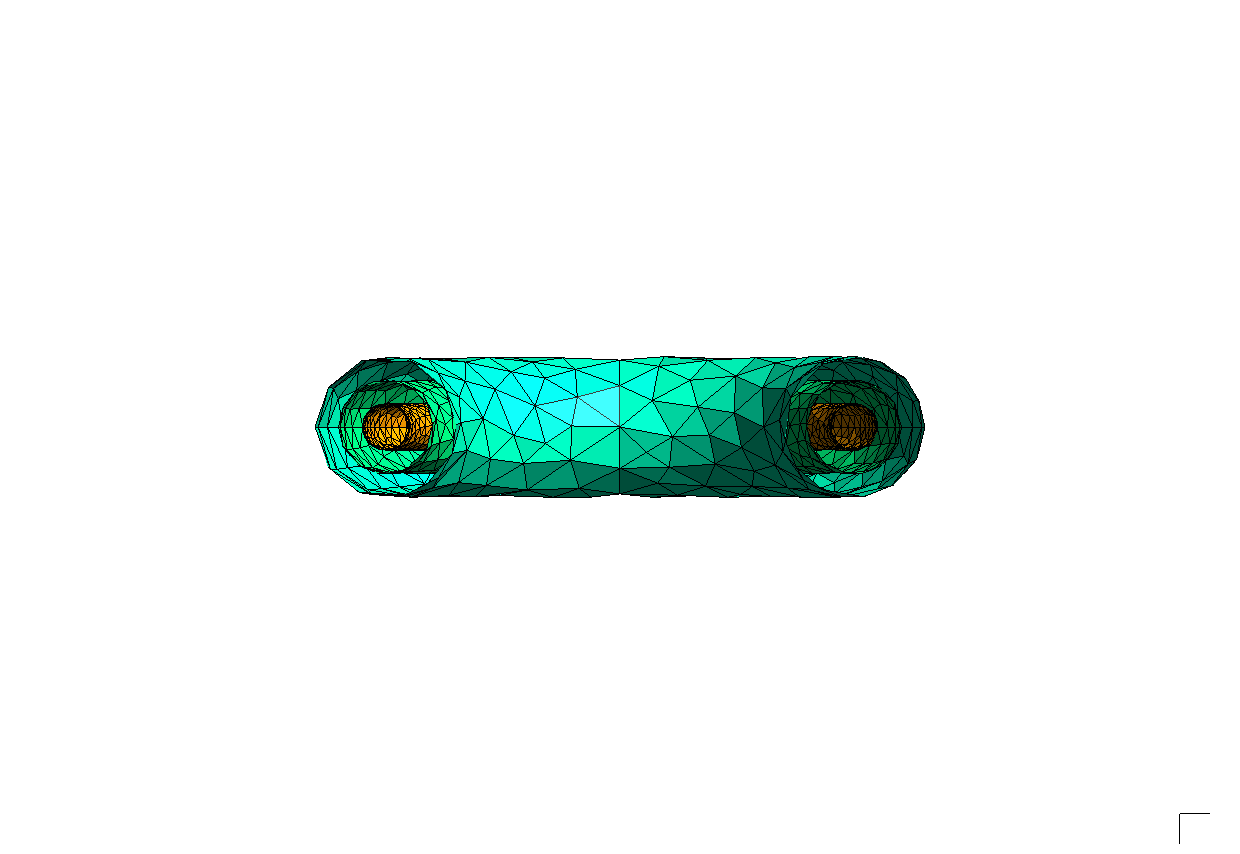

Curvature Target¶
The curvature_target option allows us to specify a target number of mesh elements per 2pi radians. This approximates an angular tolerance parameter. Note that regions of higher curvature now have a finer mesh resolution.
[15]:
geometry = build_torus_geometry()
meshing_options = sm.GmshSurfaceOptions(curvature_target=10)
mesh = sm.SurfaceMesh.from_geometry(geometry, meshing_options)
mesh.render("mesh.png", rotation_xyz=(90, 0, -90), normals=0, clipping=True)
display(Image("mesh.png", width=800))
X_ChangeProperty: BadValue (integer parameter out of range for operation) 0x0
Run an OpenMC Tally¶
Here, we model, mesh, and run a flux tally on our sample geometry using OpenMC.
[16]:
from pathlib import Path
import numpy as np
import openmc
import openmc.stats
import stellarmesh as sm
with tempfile.TemporaryDirectory() as tmpdirname:
tmp_path = Path(tmpdirname)
geometry = build_torus_geometry()
mesh = sm.SurfaceMesh.from_geometry(
geometry, sm.OCCSurfaceOptions(tol_angular_deg=0.5)
)
dagmc_model = sm.DAGMCModel.from_mesh(mesh)
dagmc_model.write(tmp_path / "dagmc.h5m")
mat1 = openmc.Material(name="a")
mat1.add_nuclide("Fe56", 1)
mat1.set_density("g/cm3", 1)
mat2 = openmc.Material(name="b")
mat2.add_nuclide("Be9", 1)
mat2.set_density("g/cm3", 1)
materials = openmc.Materials([mat1, mat2])
universe = openmc.DAGMCUniverse(tmp_path / "dagmc.h5m").bounded_universe()
openmc_geometry = openmc.Geometry(universe)
source = openmc.IndependentSource()
source.space = openmc.stats.CylindricalIndependent(
openmc.stats.Discrete([10], [1]),
openmc.stats.Uniform(0, 2 * np.pi),
openmc.stats.Discrete([0], [1]),
)
source.energy = openmc.stats.Discrete([14e6], [1])
settings = openmc.Settings()
settings.batches = 5
settings.inactive = 0
settings.particles = 100
settings.run_mode = "fixed source"
settings.source = source
mat_filter = openmc.MaterialFilter(materials)
tally = openmc.Tally(name="flux")
tally.filters = [mat_filter]
tally.scores = ["flux"]
tallies = openmc.Tallies([tally])
model = openmc.Model(openmc_geometry, materials, settings, tallies)
model.export_to_model_xml(path=tmp_path)
output_file = model.run(cwd=str(tmp_path))
with openmc.StatePoint(output_file) as sp:
tally = sp.get_tally(name="flux")
flux = tally.mean.flatten()
print("Flux:", flux)
%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%
############### %%%%%%%%%%%%%%%%%%%%%%%%
################## %%%%%%%%%%%%%%%%%%%%%%%
################### %%%%%%%%%%%%%%%%%%%%%%%
#################### %%%%%%%%%%%%%%%%%%%%%%
##################### %%%%%%%%%%%%%%%%%%%%%
###################### %%%%%%%%%%%%%%%%%%%%
####################### %%%%%%%%%%%%%%%%%%
####################### %%%%%%%%%%%%%%%%%
###################### %%%%%%%%%%%%%%%%%
#################### %%%%%%%%%%%%%%%%%
################# %%%%%%%%%%%%%%%%%
############### %%%%%%%%%%%%%%%%
############ %%%%%%%%%%%%%%%
######## %%%%%%%%%%%%%%
%%%%%%%%%%%
| The OpenMC Monte Carlo Code
Copyright | 2011-2025 MIT, UChicago Argonne LLC, and contributors
License | https://docs.openmc.org/en/latest/license.html
Version | 0.15.2
Commit Hash | e23760b0264c66fb7bb373aa0596801e5209d920
Date/Time | 2026-02-18 13:01:33
OpenMP Threads | 20
Reading model XML file 'model.xml' ...
Reading cross sections XML file...
Loading file /tmp/tmpve0e5o2n/dagmc.h5m
Initializing the GeomQueryTool...
Using faceting tolerance: 0.1
Building acceleration data structures...
Reading Fe56 from /home/alex/Programming/data/endfb-viii.0-hdf5/neutron/Fe56.h5
Reading Be9 from /home/alex/Programming/data/endfb-viii.0-hdf5/neutron/Be9.h5
Minimum neutron data temperature: 294 K
Maximum neutron data temperature: 294 K
Preparing distributed cell instances...
Writing summary.h5 file...
Maximum neutron transport energy: 20000000 eV for Be9
===============> FIXED SOURCE TRANSPORT SIMULATION <===============
Simulating batch 1
Simulating batch 2
Simulating batch 3
Simulating batch 4
Simulating batch 5
Creating state point statepoint.5.h5...
=======================> TIMING STATISTICS <=======================
Total time for initialization = 1.8215e-01 seconds
Reading cross sections = 1.5099e-01 seconds
Total time in simulation = 3.2894e-02 seconds
Time in transport only = 1.7126e-02 seconds
Time in active batches = 3.2894e-02 seconds
Time accumulating tallies = 1.3671e-02 seconds
Time writing statepoints = 2.0022e-03 seconds
Total time for finalization = 1.7225e-04 seconds
Total time elapsed = 2.1563e-01 seconds
Calculation Rate (active) = 15200.2 particles/second
============================> RESULTS <============================
Leakage Fraction = 1.05200 +/- 0.01356
Flux: [1.69780327 1.74478206]
